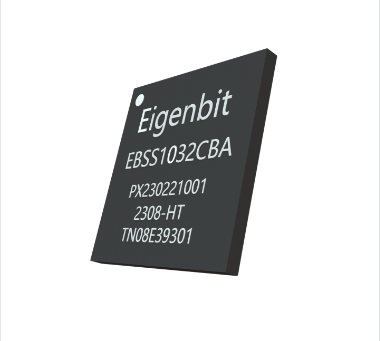

EBSS1032—Client / Industrial SATA SSD Controller

Strong error correction； High performance； Low power consumption； Strong compatibility.

Strong error correction；High performance；Low power consumption

EBSS1032 is a self-developed SATA3.2 SSD control chip by Eigenbit Technology, widely compatible with TLC and QLC NAND flash, supporting 8TB large capacity, and employing 4KB LDPC ultra-strong error correction technology, achieving industry-leading performance. It can help customers realize a ultra-strong error-correcting, high-performance, and cost-effective consumer-grade/industrial-grade solid-state drive solution.

(I) Support for Flash Memory
1. Supports 2 channels with up to 64 dies, achieving 8TB large capacity
2. Perfectly compatible with TLC/QLC flash from manufacturers such as Samsung, SK Hynix, Micron, Kioxia, Intel and YMTC
3. Supports 6-plane Flash (B58, X3-9070) from manufacturers like Micron and YMTC

(II) High Reliability
1. Built-in ultra-strong error correction 4KB LDPC engine, supports soft decoding, UBER<10^-17
2. Data reliability reaches enterprise-level standards, effectively extending product life and significantly reducing product failure & repair rates
3. Integrated RAID engine to prevent data loss due to flash memory errors
4. SRAM SECDED ECC technology, effectively avoiding soft errors in SRAM, meeting data reliability in extreme scenarios

(III) High Performance
Excellent and stable read/write performance, reaching the first-class level in the industry

(IV) Low Power Consumption
Fully optimized architecture and algorithms, with measured typical power consumption lower than industry standards

(V) Security
Supports AES256-XTS, SHA256, SM3, SM4, and other secure encryption algorithms

(VI) Turn-key Solution
Self-developed high-reliability controller, paired with mature self-developed firmware, passed rigorous validation tests, delivering mature, reliable, and efficient one-stop storage solutions to customers

(VII) Temperature Range
Consumer-grade: -25°C~70°C
Industrial-grade: -40°C~85°C

Note: Product parameters may be upgraded and changed. For more detailed product parameters, please contact us.
