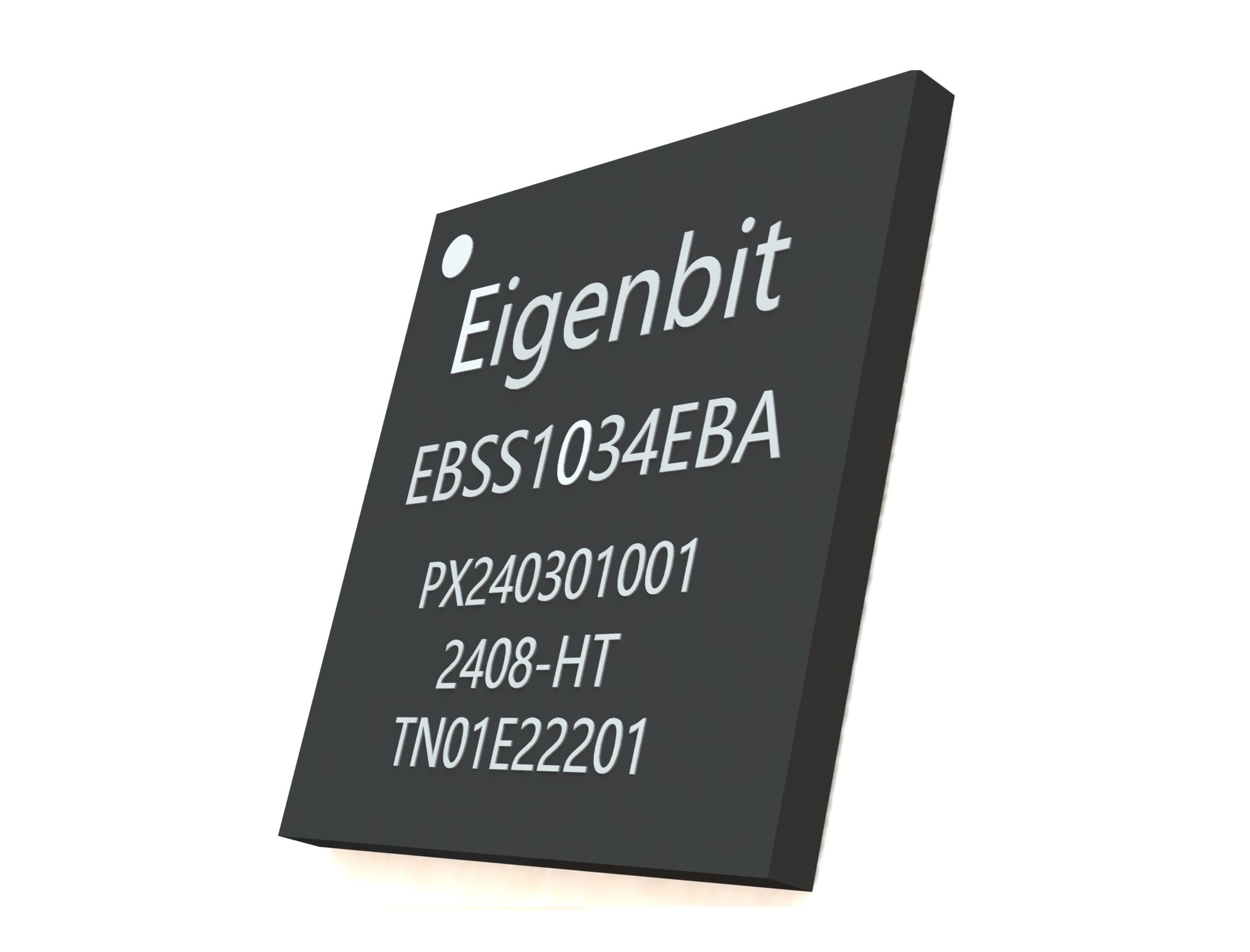

EBSS1034—Enterprise / Industrial SATA SSD Controller

Ultra-strong error correction; Ultra-large capacity; High performance; Low power consumption.

Ultra-strong error correction; Ultra-large capacity; High performance; Low power consumption

EBSS1034 is a SATA3.2 SSD control chip independently developed by Eigenbit Technology, widely compatible with TLC and QLC NAND flash, supporting 16TB large capacity, and achieving industry-leading performance. It can help customers achieve ultra-strong error-correcting, large-capacity, high-performance Enterprise-grade / Industrial-grade solid-state drive solutions.

(I) Support for Flash
1. Supports 4 channels with up to 128 Dies, achieving 16TB ultra-large capacity
2. Perfectly compatible with TLC/QLC flash from manufacturers such as Samsung, SK Hynix, Micron, Kioxia, Intel and YMTC
3. Supports 6-plane Flash (B58, X3-9070) from manufacturers like Micron and YMTC

(II) High Reliability
1. Ultra-strong 4KB LDPC error correction technology, supports soft decoding, UBER<10^-17
2. Built-in RAID engine to prevent data loss
3. Supports SRAM SECDED ECC, enhancing data reliability
4. Power loss protection technology, preventing data corruption or loss due to sudden power failure

(III) High Performance
Excellent and stable read/write performance, reaching the first-class level in the industry

(IV) Low Power Consumption
Fully optimized architecture and algorithms, with measured typical power consumption lower than industry standards

(V) Security
Supports AES256-XTS, SHA256, SM3, SM4, and other secure encryption algorithms

(VI) Turn-key Solution
Self-developed high-reliability controller, paired with mature self-developed firmware, passed rigorous validation tests, delivering mature, reliable, and efficient one-stop storage solutions to customers

(VII) Temperature Range
Enterprise-grade: -25°C~70°C
Industrial-grade: -40°C~85°C

Note: Product parameters may be upgraded and changed. For more detailed product parameters, please contact us.
