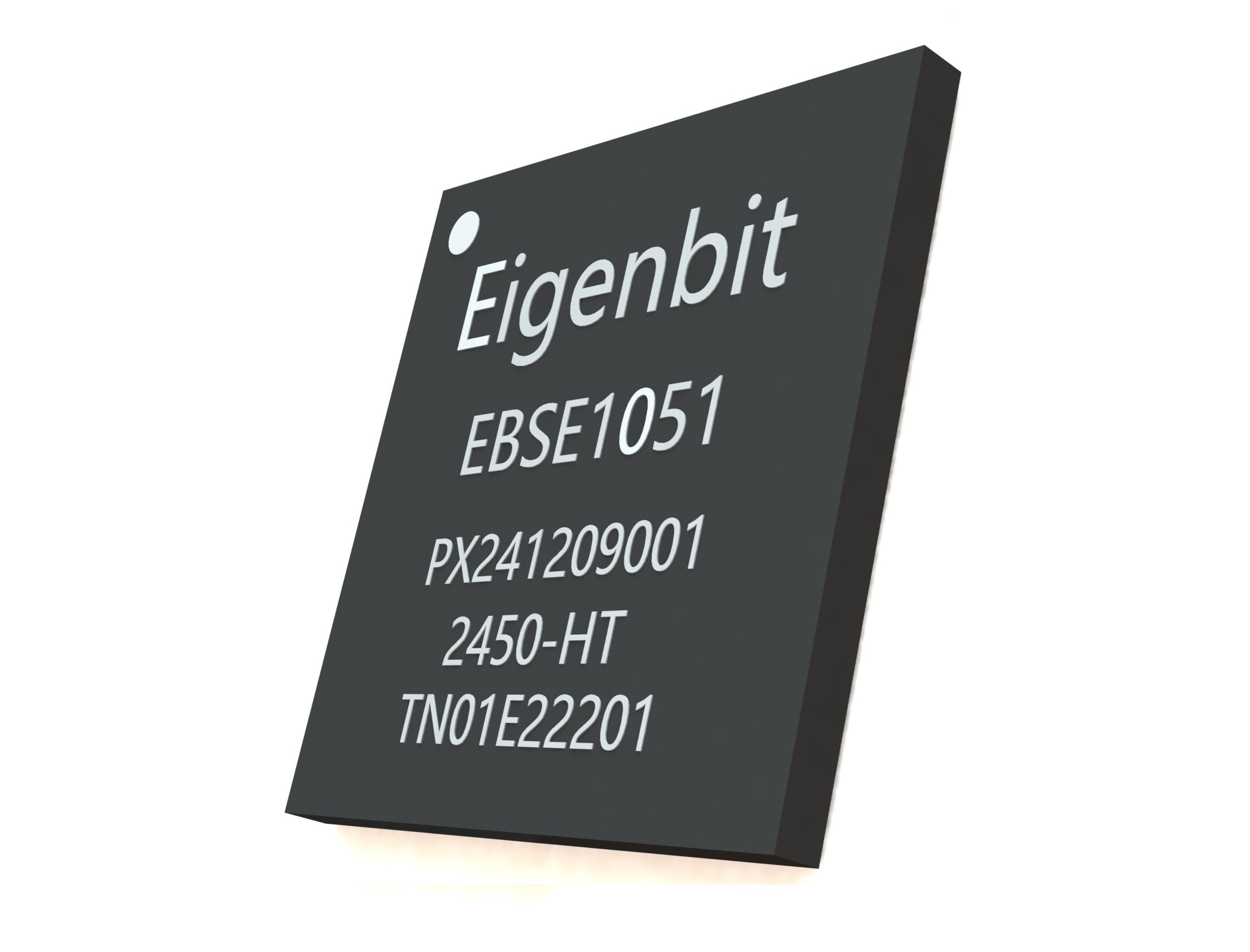

EBSE1051—Client / Industrial / Automotive eMMC Controller

Ultra-strong error correction；Ultra-low power consumption；Outstanding performance；Wide temperature range.

Ultra-strong error correction；Ultra-low power consumption；Outstanding performance；Wide temperature range

EBSE1051 is an eMMC control chip independently developed by Eigenbit Technology, which is widely compatible with TLC and QLC NAND flash, reduces power consumption by 50% compared to the industry's typical level, and achieves industry-leading performance. It can help customers achieve ultra-strong error-correcting, ultra-low power consumption, high-performance, and wide-temperature range consumer-grade/industrial-grade/automotive-grade embedded storage solutions.

(I) Support for Flash Memory
1. Perfectly compatible with TLC/QLC NAND flash from manufacturers such as Samsung, SK Hynix, Micron, Kioxia, SanDisk, Intel and YMTC
2. Supports the new 6-plane flash (B58, X3-9070) from manufacturers like Micron and YMTC

(II) High Reliability
1. Built-in ultra-strong 4KB LDPC error correction engine, supports soft decoding, UBER<10^-17
2. Data reliability reaches enterprise-level standard, effectively extending product life and significantly reducing product failure & repair rates
3. Integrated RAID engine to prevent data loss due to flash memory errors
4. SRAM SECDED ECC technology, effectively avoiding soft errors in SRAM, meeting data reliability in extreme scenarios

(III) High Performance
Read and write performance reaches the first-class level in the industry

(IV) Ultra-low Power Consumption
1. Fully optimized architecture and algorithms, with measured typical power consumption 50% lower than industry standards
2. Under 1.2 VCCQ conditions, overall power consumption is reduced by 33% compared to 1.8 VCCQ
3. In sleep mode, most chips are turned off to save power

(V) Security
Supports AES256-XTS secure encryption algorithm

(VI) Turn-key Solution
Self-developed high-reliability controller, paired with mature self-developed firmware, passed rigorous validation testing, delivering mature, reliable, and efficient one-stop storage solutions to customers

(VII) Temperature Range
Consumer-grade: -25°C~70°C
Industrial-grade: -40°C~85°C
Automotive-grade: -40°C~105°C

Note: Product parameters may be upgraded and changed. For more detailed product parameters, please contact us.
